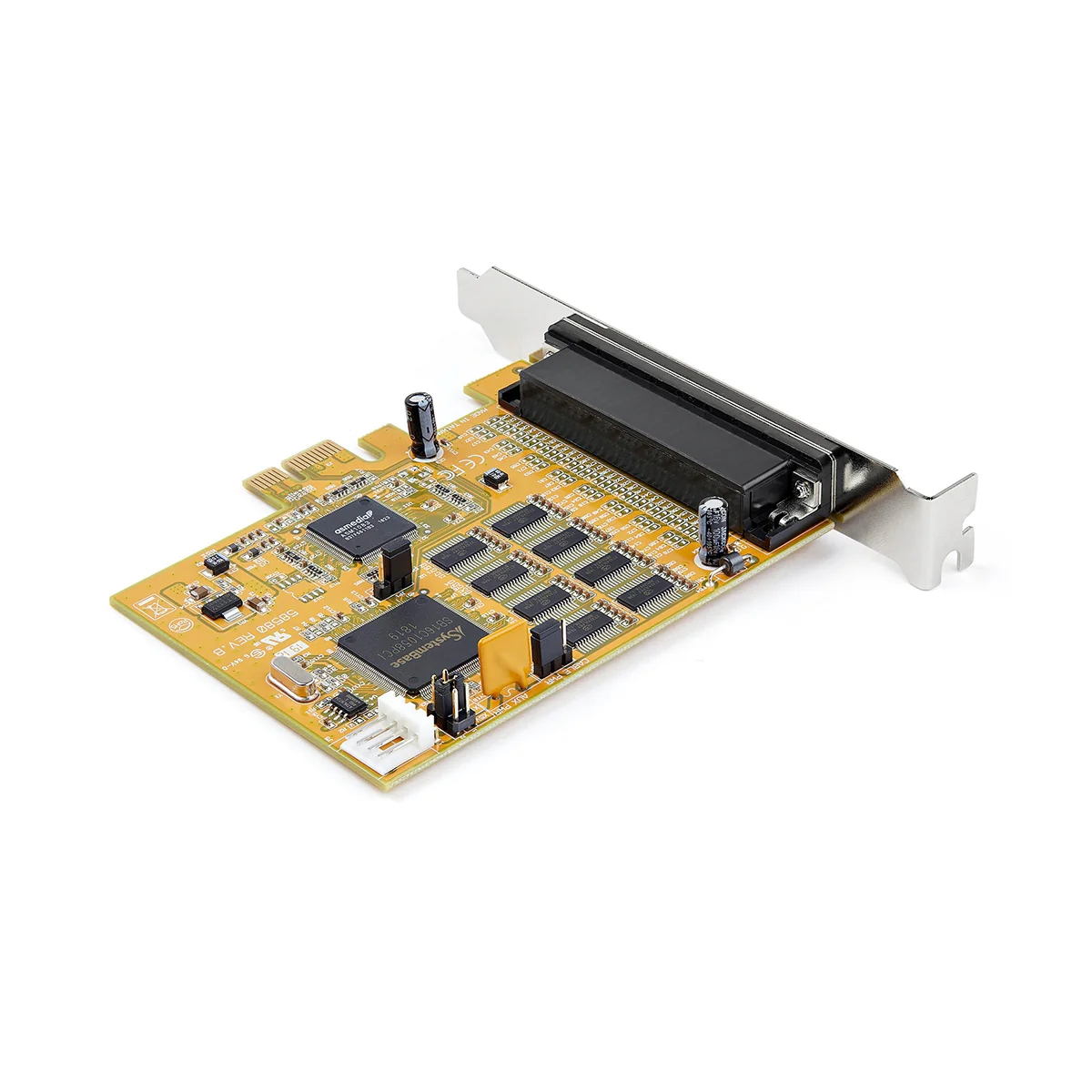

StarTech 8-Port PCI Express RS232 Serial Adapter Card

8 PORT SERIAL CARD

Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/ 15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952.

OPTIONAL CONFIGURABLE POWER

Multiport serial card provides 12v/5v, or none on pin 9 w/ up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface.

WINDOWS ONLY

Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For standard profile desktop/servers.

VERSATILE APPLICATIONS

PCI Express RS232 serial adapter card for use within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope.

TECH SPECS

• System Base SB16C1058PCI Chipset
• 16C1050 UART compatible
• 8x 9-Pin D-Sub Ports
• Max Baud 921.6Kbps per port
• 256 Byte FIFO
• Supports Windows Only
• None, Even, or Odd Parity Modes
• 5/6/7/8 Data Bits
• RS-232 Protocol
• Standard Profile Bracket
